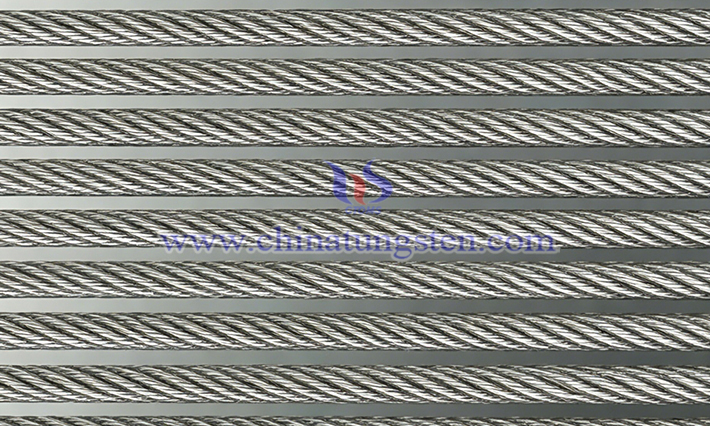

The coefficient of thermal expansion (CTE) of a tungsten wire tendon rope is primarily determined by the thermal expansion characteristics of its base material—tungsten—and varies slightly with temperature. Because the rope features a multi-strand braided structure, the gaps between strands can accommodate minute deformations; consequently, the macroscopic thermal expansion behavior of the rope is essentially the same as that of an individual tungsten wire.
I. Coefficient of Thermal Expansion of Tungsten Wire Tendon Ropes
The average linear thermal expansion coefficient of tungsten near room temperature (20°C to 100°C) is approximately 4.5 × 10??/K (i.e., 4.5 parts per million per Kelvin). This value is low compared to other common metals, falling well below that of aluminum (approx. 23 × 10??/K), copper (approx. 17 × 10??/K), and steel (approx. 11–13 × 10??/K), and even lower than most iron-based alloys (except for Invar). For doped tungsten wires (such as those containing potassium, aluminum, silicon, or rare-earth oxides), the content of dopants is extremely low (typically less than 0.5%) and has a negligible effect on the CTE; therefore, the CTE of the tungsten wire tendon rope can still be estimated using the value for pure tungsten.
II. Effect of Temperature on the Coefficient of Thermal Expansion
The thermal expansion coefficient of tungsten is not constant; as the temperature rises, atomic vibrations intensify, causing the coefficient of thermal expansion to increase gradually. In the lower temperature range (-200°C to 0°C), the coefficient of thermal expansion (CTE) of tungsten is approximately 2×10?? to 3×10??/K; from room temperature to 500°C, the average value remains between 4.5×10?? and 5.0×10??/K; as the temperature rises to 1000°C, the CTE increases to approximately 5.5×10?? to 6.0×10??/K; and in the high-temperature range of 1500°C to 2000°C, it can reach 6.5×10?? to 7.0×10??/K. It should be noted that these figures apply to vacuum or inert atmosphere environments; tungsten undergoes rapid oxidation in air at temperatures above 500°C, rendering thermal expansion measurements practically meaningless under such conditions.
III. Practical Applications of the Thermal Expansion Coefficient of Tungsten Wire Tendons
The extremely low CTE of tungsten wire tendons is highly valuable in precision transmission and high-temperature positioning applications. In systems requiring maintained tension or displacement accuracy—such as the dexterous hands of humanoid robots or the transmission mechanisms of surgical robots—the thermal expansion or contraction of the tendons caused by ambient temperature fluctuations or motor heat generation is minimal; this helps maintain repeatability in positioning and stability in force control. Similarly, in applications involving transmission components within high-temperature furnaces (e.g., tungsten ropes in monocrystalline silicon furnaces), cables in high-temperature zones of spacecraft, or actuators inside nuclear reactors, the difference in thermal expansion between tungsten wire tendons and surrounding metal components (such as stainless steel or nickel-based alloys) is small. This effectively reduces issues such as slackness, jamming, or fatigue damage caused by thermal stress. However, when tungsten wire tendons are used in conjunction with materials that have significantly different thermal expansion coefficients (such as ceramics or carbon fiber composites), design measures—such as incorporating clearances or flexible connections—are still necessary to prevent excessive interfacial stress resulting from thermal cycling.
